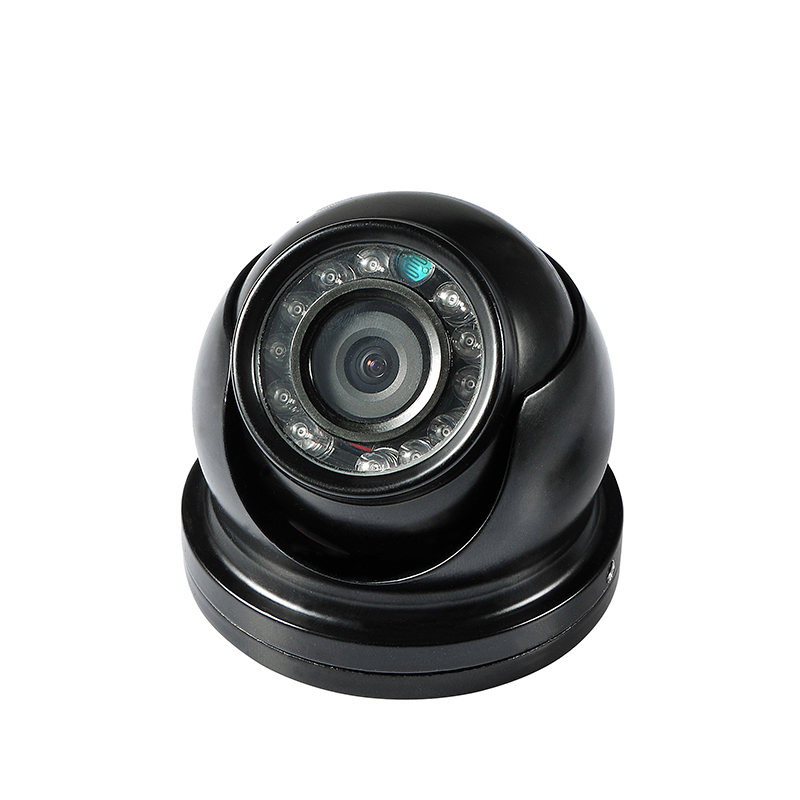

Product Name: 1080P Mini Dome Camera with IR
Model No.: AHD6038F
|
Model |
AHD6038FA |
|
|
Camera |
Image Sensor |
1/2.8' SC200AI 2MP CMOS Sensor |
|
Effective Pixels |
1920(H)×1080P(V) |
|
|
Electronic Shutter |
Automatic shutter |
|
|
Video Frame Rate |
1920*1080@ 30fps |
|
|
Synchronization |
Internal |
|
|
Min. Illumination |
Color Mode, 0.1Lux@F1.8(0Lux IR LED on) |
|
|
Video Output |
4-pin aviation connector(with power) |
|
|
Audio |
built-in microphone(Optional) |
|
|
Camera Features |
Max. IR LEDs Length |
8m, Smart IR |
|
Day/Night |
Auto(ICR) / B&W / Color |
|
|
Noise Reduction |
3D/2D |
|
|
Lens |
Focal Length |
3.6mm |
|
Angle of View (HOV) |
100° |
|
|
Mount Type |
M12 |
|
|
General |
Power Supply |
DC12V±20% |
|
Power Consumption |
Without IR on: <1.5W; With IR on: <2.5W (12 IR LEDs) |
|
|
Working Environment |
-10°C~+60°C/ Less than 90%RH (no condensation) |
|
|
Transmission Distance |
﹤100m |
|
|
Ingress Protection |
N/A |
|
|
Dimensions |
84.2*56.4*80mm |
|
|
Weight |
About 273g |
|
