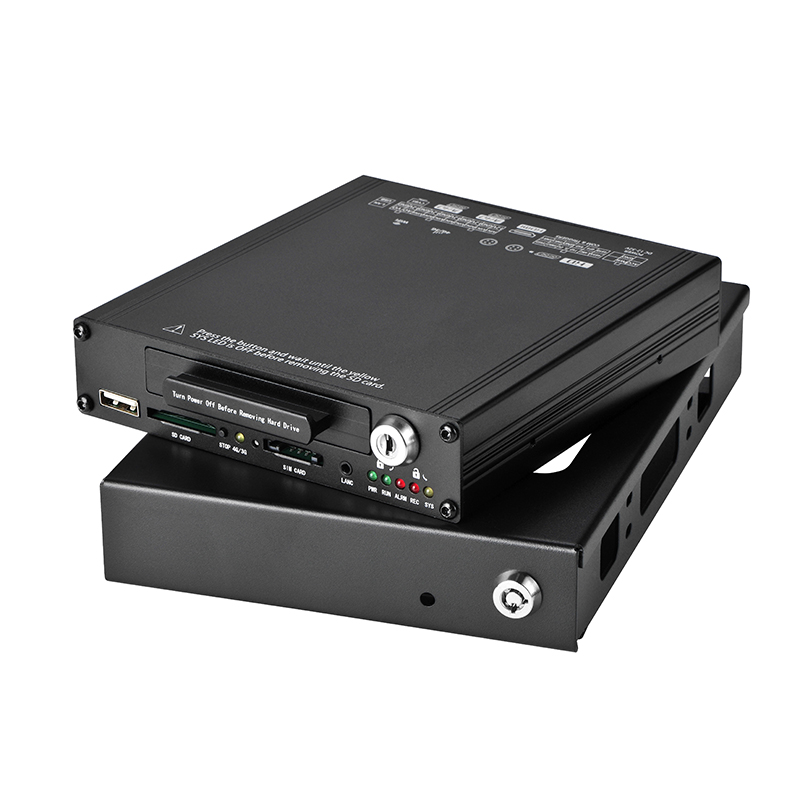

Product Name: 5CH HYBRID MDVR
Product Model: HDVR9814H
General Introduction
The Hybrid Mobile HDD video recorder is a compact, full-featured recording system that uses a hard disc as a storage device. The recorder unit and associated accessories are specifically designed for operation in a mobile environment.
The Mobile HDD video record system, used in conjunction with the cameras, records up to 5 channels of full-motion video and audio data to a removable hard disc. The firmware-driven menu system provides a simple method for configuring the unit’s operation as well as searching for and viewing previously recorded AV records.
1.1 Video And Audio
High Profile video compression, real time recording 30 fps. Frame rate adjustable for each channel.Audio compression: G.711 codec. This codec offers high compression with high quality audio.5 channels 1080P resolution for analog camera.
1.2 Power Management
Reliable power management, wide voltage: +12VDC~+32VDC; The power input is protected against short positive transient (1500 watts peak pulse power capability with a 10x1000 us waveform); The power input is protected against negative voltage.
Applicable for vehicles with +12V or +24V battery.The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit.
Can use ignition to control the power.
DVR can monitor battery voltage after Ignition off, and auto into sleep mode when voltage is bellow specified level.
1.3 Recording Mode
Continuous record.
Support schedule recording.
Support alarm recording.
Support alarm pre-recording and post-recording.
Support motion detection recording.
1.4 GPS Time Synchronization & Time Zone.
Synchronize the DVR system time with GPS automatically.
Support All Time Zones Worldwide.
Support DST (Daylight Saving Time).
1.5 Speed And vehichle status recording
Record vehicle speed and car id with audio and video.
Support 3 sensors, can be connected to speed, ignition, brake, return, right turn, left turn light etc.
Over-speed alarm and trigger recording with separated files.
1.6 Hard Disk
Support hard disk up to 6T. Please note, the inside height of the hard disk case is 10.2mm, please select the hard disk whose height is less than 9.5mm.
1.7 SD Card
Support SDHC card within 32GByte.
Support SDXC card more than 64GByte (Maxim 2048GByte)
Support hot-plug when the DVR system is not recording or remote-operation(remote copying or playing back)
Note: If you remove the SD card while recording or operating (remote copying or playing back), it might cause the damage of the files on SD card. While recording, the yellow light on the front panel will be on. So please stop recording or operating until the yellow light is off if you need to remove the SD card.
1.8 Multiple Player Supported
VLC media player (version1.0.0 or above);
Storm player (Version 2009 or above);
Winamp (Version 5.531 or above).
|
Model |
HDVR9814H |
|
|
System |
Operating System |
Linux 4.19.90 |
|
Start up Time |
<20 s (From Powered on to start recording) |
|
|
Operator Interface |
English / Simplified Chinese/Russian |
|
|
Storage |
2.5” Hard Disk(up to 6TB), SSD(up to 2TB) or SD Card (up to 256GB) |
|
|
UI |
GUI |
|
|
Video System |
support 1080p30 recording |
|
|
Video |
Video Input |
Maximum for 4x 1080p Analog/AHD cameras + 1x 1080p digital camera |
|
Video output |
2 Video Output (1 HDMI output, 1 CVBS output, HDMI is optional) |
|
|
Preview |
Support FullScreen/Dual View/Quad View/6 Cameras view/8 Cameras view/9 Cameras view/10 Cameras view/12 Cameras view |
|
|
Standard Stream |
ISO 14496-10 |
|
|
Recording Resolution |
Support 1920x1080/1280x720/960x540(According to the type of camera) |
|
|
Recording |
Supports normal, schedule, alarm recording and continuous |
|
|
Record File |
AVI file, record video and audio at same time |
|
|
Bitrate |
100～8000 kbps for each camera |
|
|
Max fps (total) |
120fps@1080P for H.264 analog camera + 30fps@1080P for H.264 digital camera |
|
|
Audio |
Audio Input |
5 audio input(built in the camera) |
|
Audio compression |
PCM(According to the type of camera) |
|
|

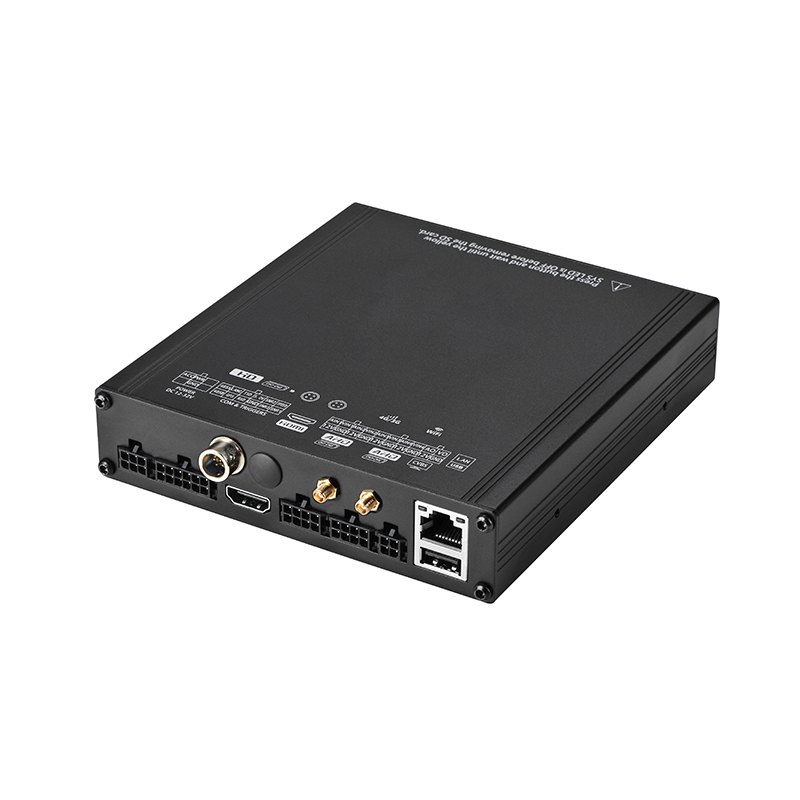

Interface I/O |
LAN |
1(RJ-45) 10M / 100M Ethernet port |
|
USB |
Two USB 2.0, can be used for mouse, USB stick |
|
|
RS485 |
One RS485 port |
|
|
Serial |
One RS232 port (For GPS) |
|
|
Network |
WiFi(Optional) |
Build in 802.11b/g/n AP, speed up to 300Mbps |
|
Protocol |
TCP/IP |
|
|
Communication(Optional) |
build in 3G/4G(HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA/FDD-LTE/TDD-LTE) |
|
|
Alarm & Sensor |
Inputs |
3 Alarm input, 1 ignition, 1 Panic button, G-Sensor |
|
Outputs |
1 beeper, Alarm OSD |
|
|
Multi-mode |
Activation by video loss, maximum permissible speed, Collision, stroage space, Video Motion, etc.. |
|
|
Power Supply |
Ignition key |
Recording starts when ignition is on, stops with delay time when ignition is off. |
|
Power Consumption |
Less 5.0W (No camera power consumption included) |
|
|
Power Input |
12VDC～32VDC |
|
|
Power Output |
11.5V/1.5A (5 channels) |
|
|
G-Sensor |
G-Sensor |
Support for three-axis motion detection |
|
Physical Characters |
Dimension |
162.3x133.0x30.2 mm |
|
Weight |
About 0.55kgs |
|
|
Others |
Backup |
By WiFi (300Mbps, Actual download speed up to 150Mbps) |
|
Clock |
Internal, permanent calendar, Time sync from GPS (if available) |
|
|
GPS |
Support GPS/GLONASS/BEIDOU，recording location, speed, live tracking |
|
|
Function Dual Streaming |
Two different bit stream for recording and live streaming via 4G/3G |
|
|
Self-protection |
Protection against overload, short circuit and reverse polarity |
|
|
Reset |
Option to return to factory default setting |
|
|
LED’s |
Indicates Power, RUN, Alarm, Media Access, Recording status, network and 3G/4G |
|
|
Method of writing and reading of data |
Overwrite ON/OFF selectable |
|
|
Environment |
Operating Temperature |
-25 ～ 55°C |
|
Relative humidity |
5%～93% |
|
|
Vibration resistance |
< 3 Grms |
|
|
Resistance to mechanical shock |
< 1200 Grms |
|
|
ACC |
<4.5V |
Ignition Off |
|
>6.2V |
Ignition On |
|
|
Embedded Software |
Config. FPS per channel |
allows (1~30fps) |
|
ID records vehicle license plate |
Support |
|
|
USB |
Support |
|
|
Rename channels |
Support |
|
|
Watermark |
Includes date and time, latitude and longitude, vehicle speed, and vehicle ID plate and name or channel number |
|
|
Schedule |
Settings hour, minute, 3 time plans per day |
|
|
Image Playback |
Support play back, file listed by date and time, alarm |
|
|
Firmware Upgrade |
Can use hard disk/USB disk/SD card/remote upgrade via 4G |
|
|
Playback Speed |
Support from 1/32 to 32 |
|
|
Software |
hPlayer |
Player software, play multiple cameras together, can also play the encrypted file |
|
CMSV6 |
Used for 4G/3G model only, support live view/live tracking/historical track/remote upgrade etc |
|
