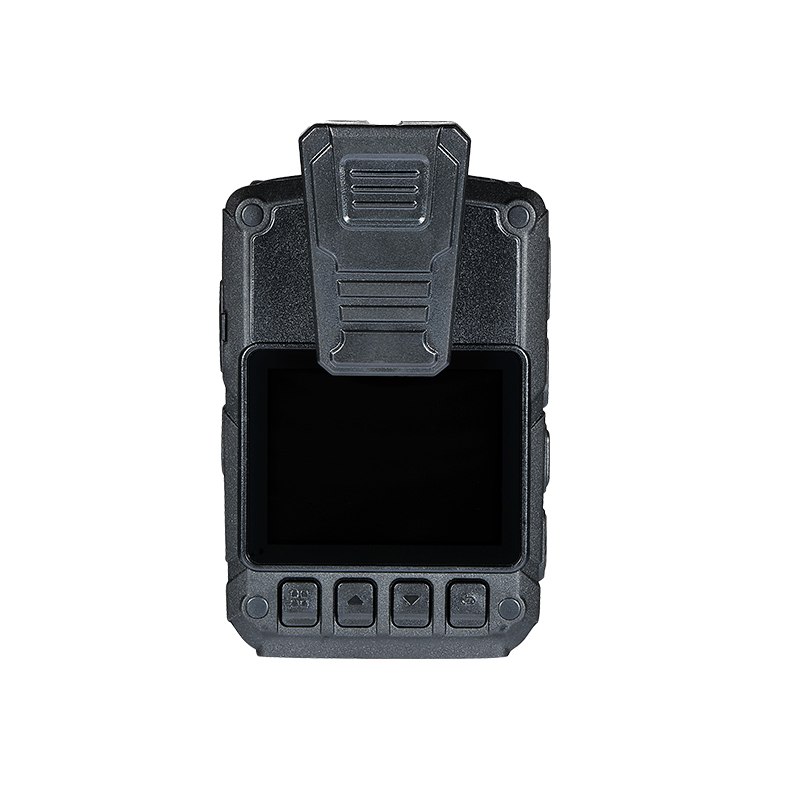

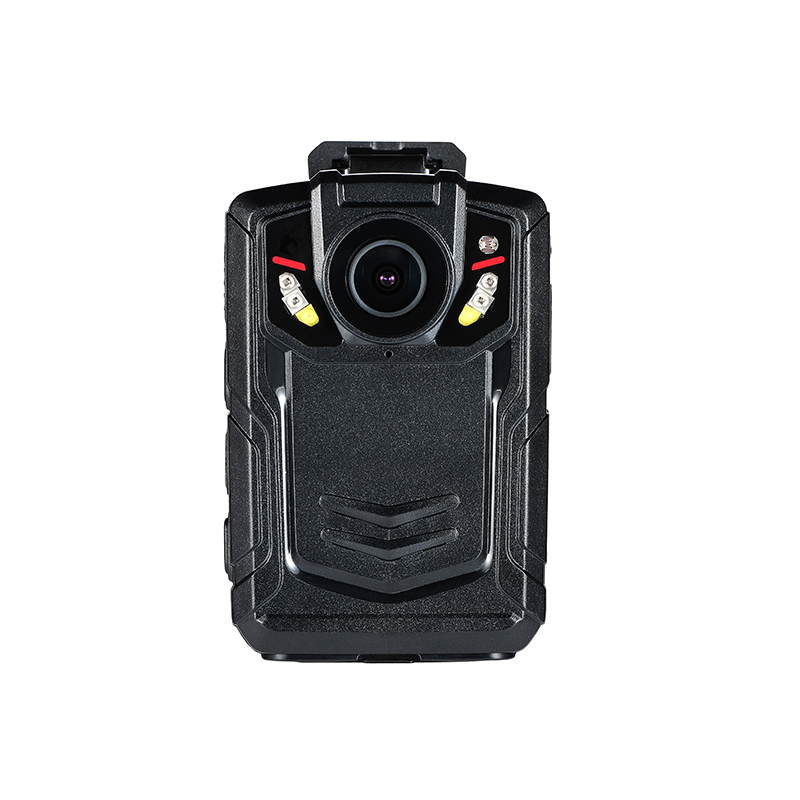

Product Name: Body Worn Camera
Model No.: BC102
Model No.: BC102
• High Quality Recording: Record resolution up to 2688x1512 (1512P).
• Live Streaming: The camera has the ability to stream in real time via 4G or WiFi connectivity. High quality video can now be seen live in the control center allowing real-time situational awareness and decision making. The operator can also understand the wearer's position by built-in GPS. Alternatively, camera wearer can send an alert back to a control centre with their live video, GPS location details.
• 18-Hour Full Shift Battery Life: 2 replaceable batteries and up to 18-hour working life ensures your camera lasts a whole shift which is critical to ensure recording capability.
• Record File Protection: Using the AES256 encryption technology, the record file in the camera will be safe and be protected from unauthorized access.
• Interphone Function: By pressing the PTT button on the camera, the camera can work like a walkie talkie and talk to other cameras anywhere in the world via 4G or WiFi connectivity.
• Foot Pursuit Activation: With a built-in accelerometer, the camera can detect when an officer is running and trigger recording, allowing the officer to focus on remaining safe during a high-stress encounter.
• Facial Recognition: The camera can scan and recognize the faces of potentially everyone they see while on patrol.
• Ragged and Waterproof: With rugged design and IP66 waterproof, the camera stands up to the most extreme environments. The camera can survive froms drops & impact.It can also be used in the rain, dust and extreme temperatures.
|
OS |
OS |
Linux |
|
Startup Time |
8s |
|
|
Language |
English/Russian/Spanish/Korean |
|
|
Screen |
2-inch color LCD |
|
|
Recording Video Resolution |
2688×1512/2560×1440/2304×1296/1920×1080 |
|
|
Recording Frame Rate |
25fps@(2688×1512)/30fps@(2560×1440)/30fps@(2304×1296)/30fps@(1920×1080) |
|
|
Record mode |
Record video&audio altogether, independent dual stream for local recording and live view video. |
|
|
Live View Video Resolution |
2688x1512,2560x1440,1920x1080,1280x720 |
|
|
Audio |
Audio Input |
1x MIC input, support intercom connection with USB |
|
Audio Output |
Built-in high-quality speaker |
|
|
External Audio Port |
10 pin mini-USB port for headphone,microphone |
|
|
Compression |
PCM |
|
|
Audio Record |
Support record auido file only |
|
|
Photo |
Performance |
8640x4752 / 7680x4288 / 5760x3216 / 1920x1080 optional |
|
Snap |
Support capturing pictures from live video |
|
|
Photo File Format |
JPG |
|
|
Burst Shooting |
5/10/20/25 pictures at a time |
|
|
Lens |
Image Sensor |
5 million pixels HD sensor |
|
Angle |
105 degrees (HOV) |
|
|
Digital Zoom |
8X |
|
|
Geometric Distortion |
less than 16% |
|
|
Storage |
Data Storage |
Built in 32GB TF card(optional up to 256GB) |
|
Night Vision |
Night Vision |
Night vision automatically/manually turned on in low light environment |
|
Performance |
Up to 7 meters with visible face detection |
|
|
Light Source |
Flash Light |
To increase brightness when you are recording or taking a photo |
|
Laser |
Auxiliary locking imaging center or laser marking |
|
|
Connectivity |
USB |
1x USB Mini port |
|
External Camera |
External Camera |
Support external 1080P HD IR camera (optional) |
|
Network |
Protocol |
TCP/IP, RTSP,GB/28181 |
|
3G/4G |
FDD-LTE/TDD-LTE/WCDMA/EVDO/GPRS |
|
|
WiFi |
IEEE 802.11 b/g/n or IEEE 802.11 a/b/g/n/ac(optional) |
|
|
Bluetooth |
Bluetooth 4.2 or Bluetooth5.0 (optional) |
|
|
GPS |
Positioning |
Built-in GPS. Support GPS/GLONASS (optional） |
|
Firmware |
Facial Recognition |
Face recognition with deep learning algorithm, massive local blacklist or cloud recognition (optional) |
|
Plate Number Recognition |
Support (optional) |
|
|
Voice Control |
Support (optional) |
|
|
G-Sensor |
Support (optional) |
|
|
Voice Broadcast |
Support (optional) |
|
|
Playback |
Support local playback, search video files by time, alarm, etc. |
|
|
Remote View |
Support remote online playback & file download |
|
|
Interphone |
Support (optional) |
|
|
On Screen Display |
Date, time, device ID, user number, location information, speed information, etc. |
|
|
Overwrite |
Support |
|
|
Playback Speed |
Fast forward/backward 1~128 times |
|
|
Pre & Post Event Buffer |
10s pre-recording, 60s post-recording |
|
|
Password Authorization |
Support |
|
|
Encryption |
AES256 encryption |
|
|
Log |
Support |
|
|
Software |
hPlayer |
Play back multiple cameras files together, including the encrypted files. At the same time it analyzes the data information in the file. |
|
CMSV6 |
Support real-time preview & positioning, track playback, intercom, remote command issuance, etc. |
|
|
Upgrade |
Firmware Upgrade |
Upgrade via USB interface or remote upgrade on CMSV6 |
|
Power |
Battery Capacity |
2*2700mAh batteries |
|
Backup Battery |
Built-in 60mAh battery to ensure continuous power during replacement. |
|
|
Working Hour |
18 hours of continuous recording @1920x1080 (two batteries) |
|
|
Charging Time |
1A power adaptor, 4 hours charging |
|
|
Working Environment |
Operating Temperature |
-30--55℃ |
|
Humidity |
40%～80% |
|
|
Other |
Cradle |
Charging and USB data transfer |
|
Time |
Support time synchronization with network, computer or GPS |
|
|
Light Indicator |
Light indicators for charging, idle, video recording, photo, audio recording |
|
|
IP Rating |
IP66 |
|
|
Drop |
2m |
|
|

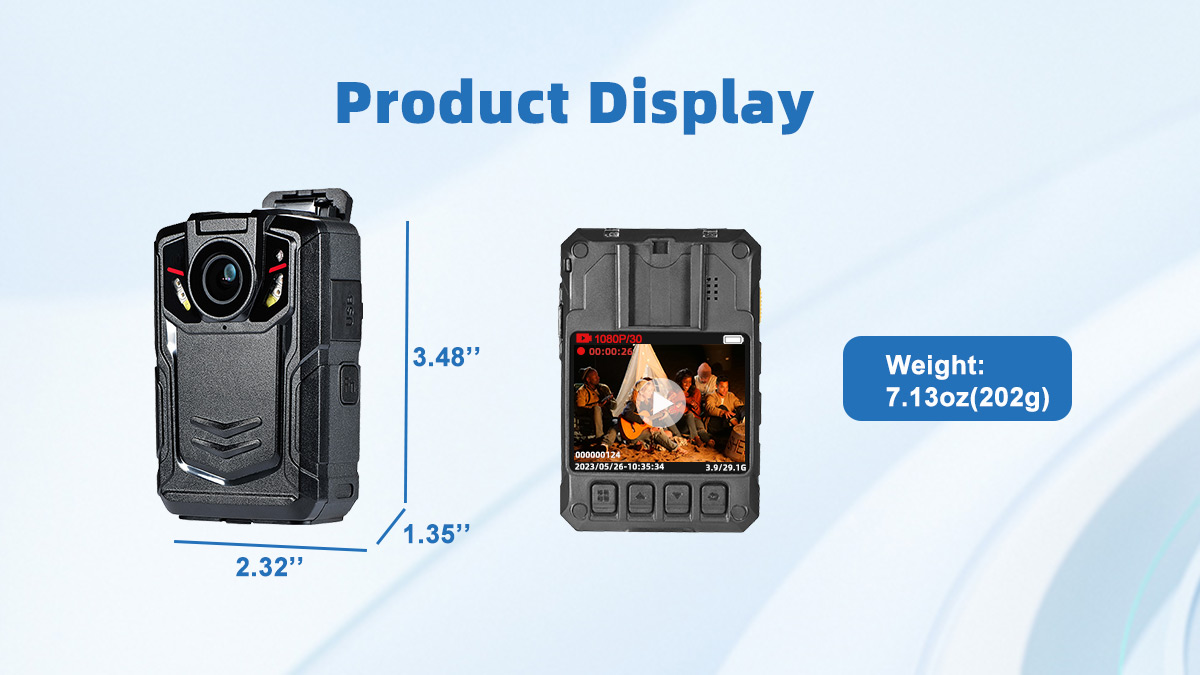

Size |
3.48" x 2.32" x 1.35" ( 88.4mm x 59mm x 34.3mm) |
|
|
Weight |
7.13oz (202g) |
