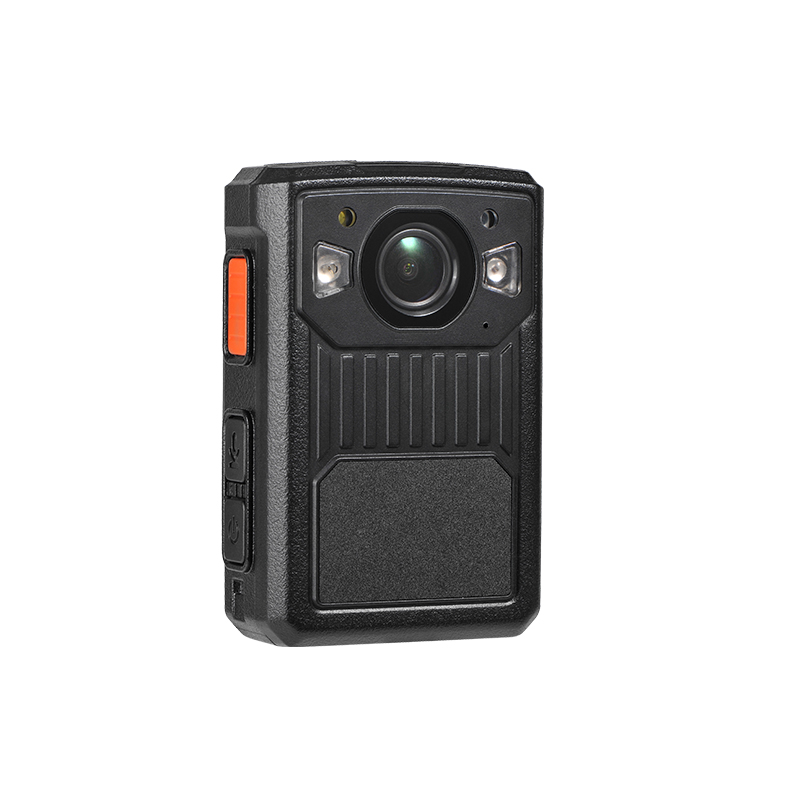

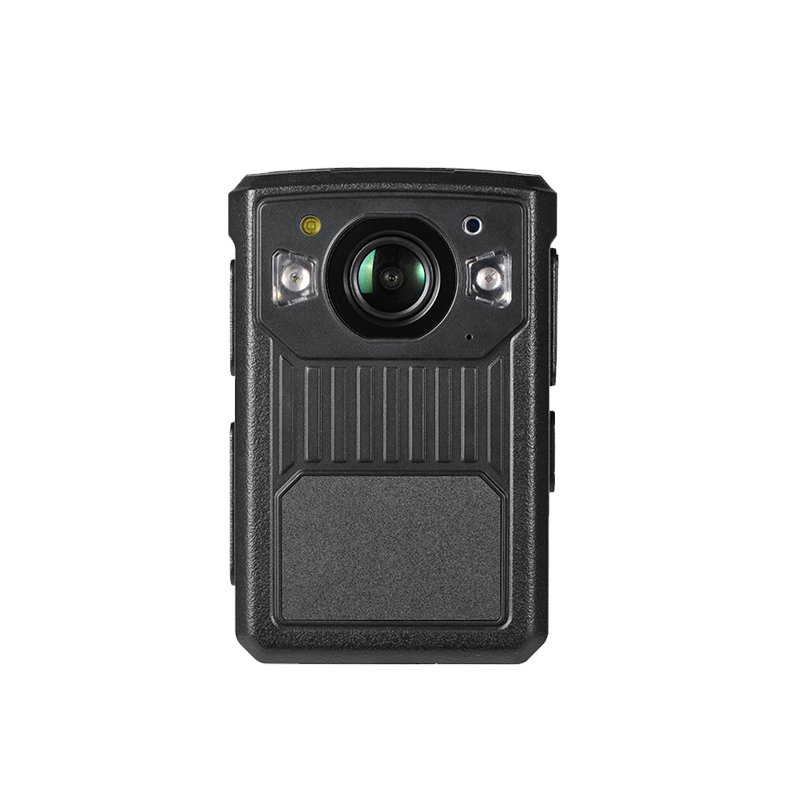

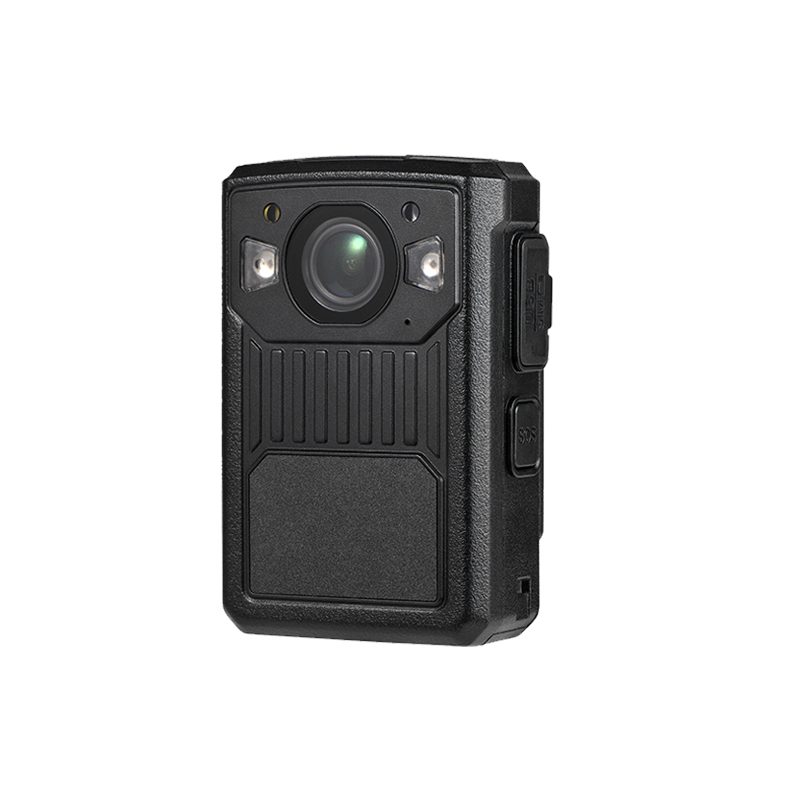

Product Name: 40H Recording Body Camera
Model No.: BC508
Product Name: 40H Recording Body Camera
Model No.: BC508
• High quality recording: Record resolution up to 2650x1440 (1440P).
• Live Streaming: The camera has the ability to stream in real time via 4G or WiFi connectivity. The operator can also understand the wearer's position by built-in GPS. Alternatively, camera wearer can send an alert back to the control centre with their live video, GPS location details.
• 40-Hour full shift battery life: Up to 40 Hour Battery Life ensures your camera lasts a whole shift which is critical to ensuring recording capability.

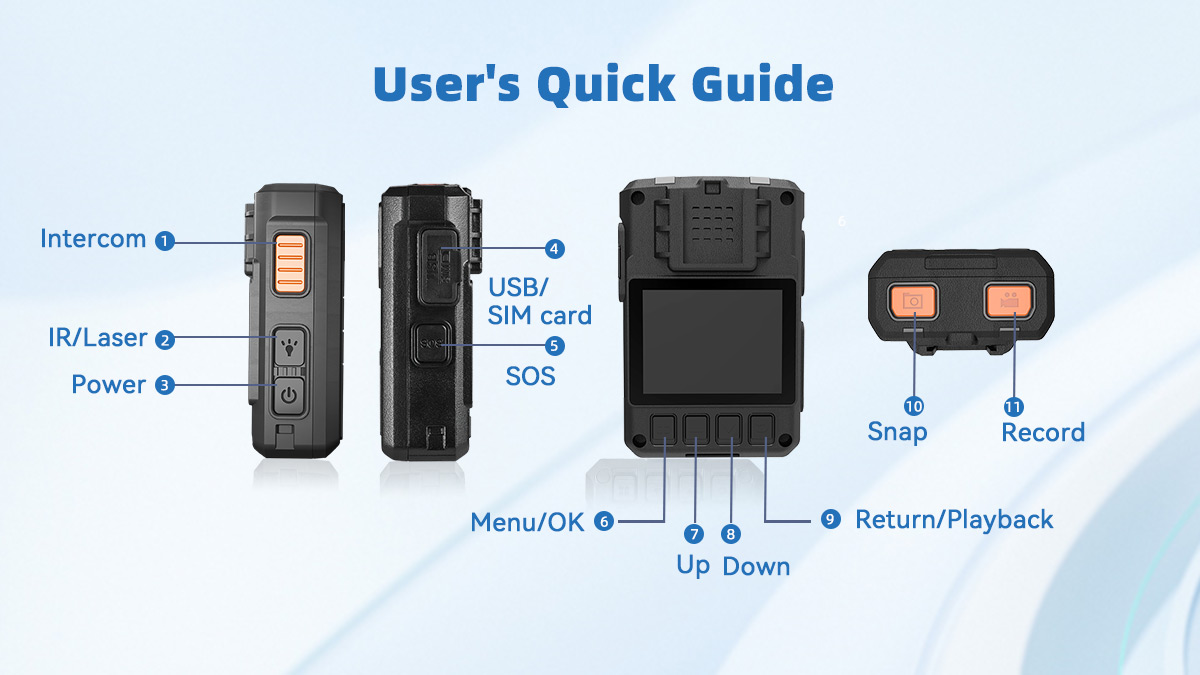

• Interphone function: By pressing the PTT button on the camera, the camera can work like a walkie talkie and talk to other cameras anywhere in the world via 4G or Wifi connectivity.
• Professional loudspeaker: Using 30 * 20mm runway-shaped speakers, it makes sound waves easier to focus and transmit, presenting sounds clearer and more natural, in high volume situations maintain souds clarity and transparency without distortion.
• Rugged and Waterproof: With rugged design and IP67 waterproof, the camera stands up to the most extreme environments. The camera can survive drops & impact. It can also be used in the rain, dust and extreme temperatures.
|
OS |
OS |
Linux 4.4.94 |
|
Booting time |
<8 s |
|
|
Video |
Video input |
1x digital built-in Camera |
|
Video output |

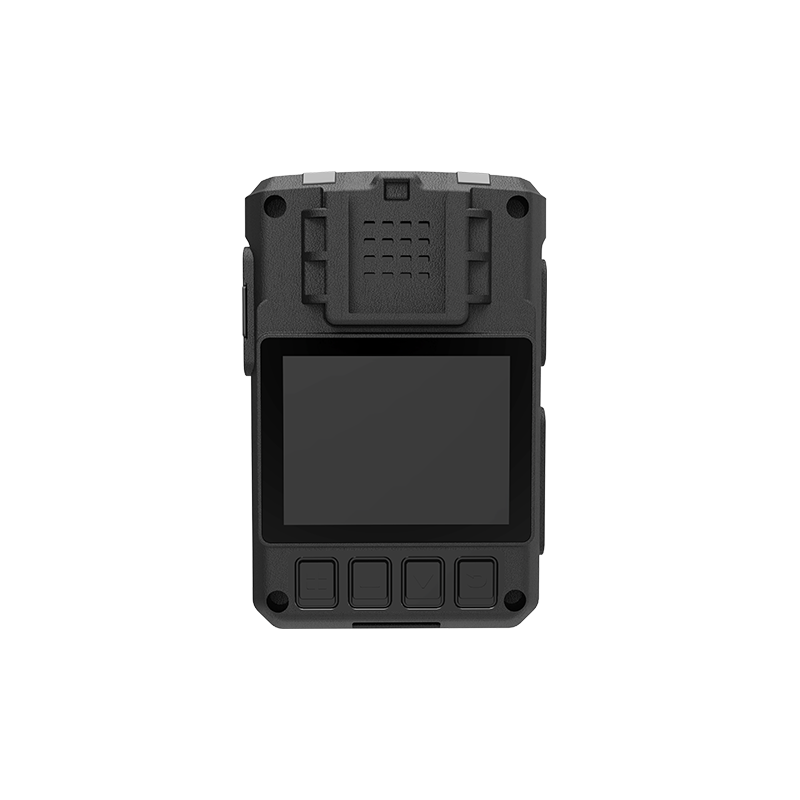

2 inch IPS LCD screen (320x240) |
|
|
Recording resolution |
30fps @(720p/1080p/1296p /1440p) |
|
|
Record mode |
Record audio and video synchronously |
|
|
Compression |
H.264 / H.265 for Video, and AAC for audio |
|
|
Audio |
Audio input |
1x MIC input |
|
Audio output |
1x head phone interface |
|
|
Record mode |
Support to record audio only into .wav file |
|
|
Video process |
Live streaming |
720p (only for 4G/WiFi device) |
|
Photograph |
2M,16M, 32M, 64M |
|
|
Snap |
Support snapping during recording（the photo resolution base on recording） resolution） |
|
|
Storage |
Built in 32GB TF card (available for 32～512GB) |
|
|
Light source |
Flash light |
To increase brightness when recording or taking a photo |
|
IR |
Up to 10 Meters with Visible shape image at night |
|
|
Two way radio |
Talk back |
Support two way radio between different devices(only for 4G device) |
|
Talk back with platform |
Support two way radio between device and platform(only for 4G device) |
|
|
Lens |
Lens’s angle |
118° (HOV), 138° (FOV) |
|
Alarm |
Alarm input |
Support alarm input and the alarm can be show in platform |
|
Interface |
USB |
1x USB2.0, for charging, firmware updating |
|
Network |
Protocol |
TCP/IP,Onvif, RTSP |
|
4G |
Optional, built in 4G module(WCDMA/FDD-LTE/TDD-LTE) for live view |
|
|
Wi-Fi |
Optional, support Wi-Fi in AP or Client mode (to access internet via WirelessAP), for live view or uploading recorded files directly into cloud server |
|
|
Dock Station |
Connect to GigE dock station and upload recorded files directly into cloud server |
|
|
GPS |
GPS |
Optional module for GPS/BDS/GLONASS, to record coordinates and speed |
|
Firmware |
OSD |
Display and burn in text of date, time, officer ID, geo-tags, speed |
|
Overwrite |
Support overwrite or non-overwrite mode |
|
|
Play back |
Support play back, file listed by time and alarm |
|
|
Pre-Rec/post-Rec |
Maximum 5 min pre-recording and 5 min post-recording |
|
|
De-Warp |
Support de-Warp to correct distorted image |
|
|
Safe mode |
Need password to enter Setting or Playback in safe mode |
|
|
Record encryption |
Support Record encryption, encrypted video can be played in special player |
|
|
Log |
Record power ON/Off, setting change, start record, alarm etc. |
|
|
Software |
hPlayer |
Player software, play multiple cameras together, can also play the encrypted file |
|
CMSV6 |
Support live view/live tracking/historical track(4G device only) |
|
|
Upgrade |
Firmware maintain |
Firmware can be upgraded through USB/Network |
|
Working condition |
Temperature |
-30~65℃ |
|
Humidity |
40%~80% |
|
|
Other |
Time |
synchronize with GPS, internet, PC |
|
Factory Default |
Can set to default factory setting |
|
|
Indicators |
Power,Record, Snap, Audio record, Charging, Charging Complete |
|
|
Battery |
Optional 3600mAhnon-replaceable battery, 1080p30 recording for35h,fully Charging timeabout 3h |
|
|
Optional 4200mAhnon-replaceable battery, 1080p30 recording for40h, fully Charging timeabout 3.5h |
||
|
Waterproof |
IP67 |
|
|
Size |
84.8*55.4*32.1mm |
|
|
Weight |
About145g(with3600mAh) and 155g (with 4200mAh) |
